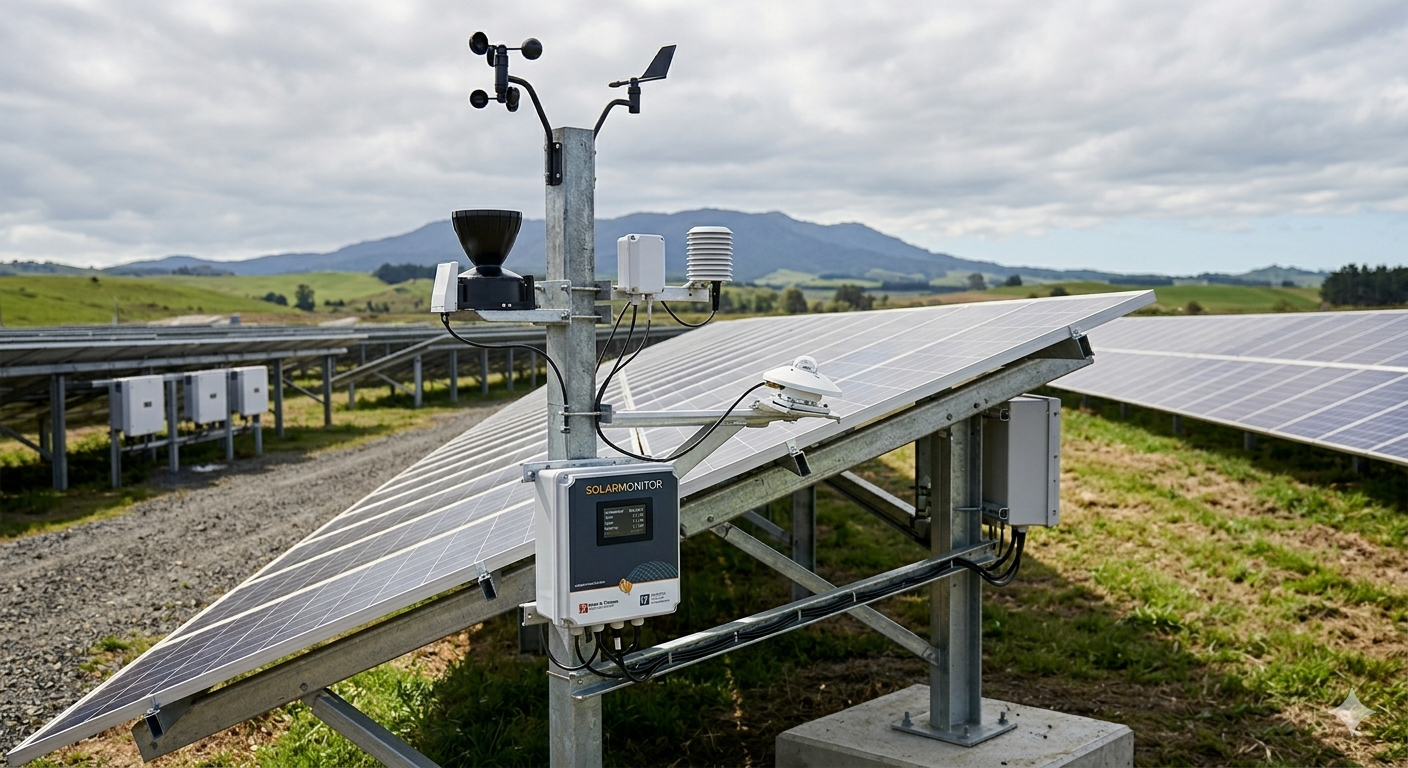

Weather Monitoring System (WMS)

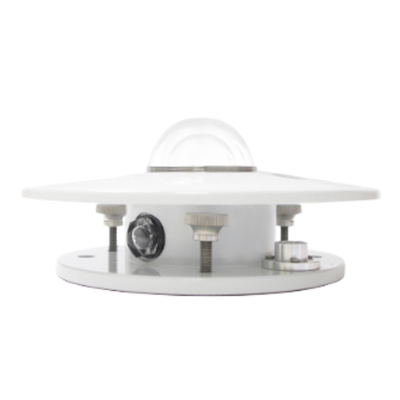

IP200-03 Pyranometer is produced based on the thermopile principle; sensing elements are made by wound plated thermopiles with multiple contacts. Its surface is coated by black coating with high absorption rate.

IP200-03 Pyranometer is produced based on the thermopile principle; sensing elements are made by wound plated thermopiles with multiple contacts. Its surface is coated by black coating with high absorption rate. Hot contacts on the sensors surface, while the cold junction is located within the body, temperature difference between the hot and cold junction generates an electromotive force, the thermoelectric effect is proportional to the solar radiation. In order to reduce the ambient temperature effect, temperature compensation circuit designed here to minimize its impact on the product's performance. The RK200-03 series pyranometer has been certified by the National Meteorological Administration and the National Institute of Metrology (NIM).

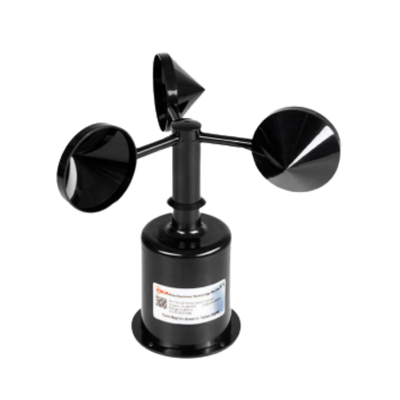

The IP100-01 Wind Speed Sensor is specifically designed to accurately and reliably measure wind velocity under the adverse environmental conditions. Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are build-in.

The IP100-01 Wind Speed Sensor is specifically designed to accurately and reliably measure wind velocity under the adverse environmental conditions. Digital circuits capable of strong RFI & EMI resistance and automatic temperature compensation are build-in, it outputs voltage and current signals by electromagnetic induction, the value and horizontal wind speed are linear relation. Shell is made of high-strength aluminum alloy, the sensor housing is made of aluminum alloy, the PCB board is painted with anti-corrosion coating, featured with water proof, corrosion resisting. Inside and turning position have sealing rings with nice sealing function, stop water, salt fog and dust getting in. The RK100-01 Wind speed sensor has good performance in harsh environment.

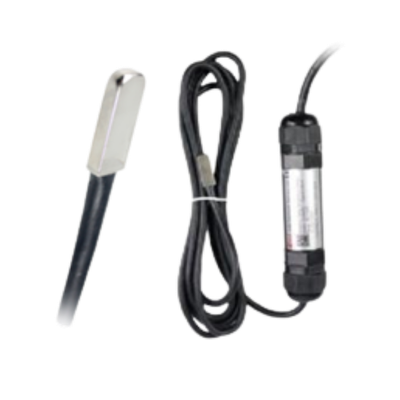

IP220-01 Paste Type Temperature Sensor adopts high precision platinum resistance (PT100) as the sensing component. It is with high accuracy, good stability.

IP220-01 Paste Type Temperature Sensor adopts high precision platinum resistance (PT100) as the sensing component. It is with high accuracy, good stability. The signal conversion module can convert temperature to corresponding voltage, current or RS485 optionally. RK220-01 Past type temperature sensor is compact, easy-to-install, with good linearity, strong load capacity, long transmission distance and good anti-interference ability.

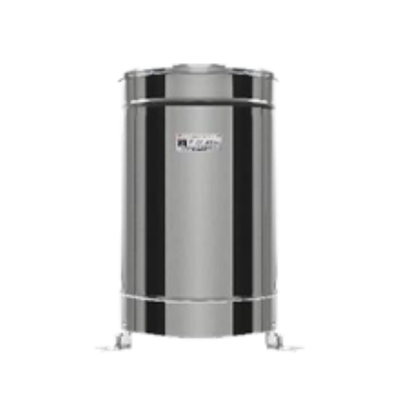

IP400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output.

IP400-01 Tipping Bucket Rainfall Sensor is an instrument for testing rainfall in the nature. In order to meet the requirement of information transmission, processing, recording and display, the amount of rainfall is converted to pulse output. It can be widely used in weather station, hydrometric station, agriculture & forestry, defines & field monitoring station. It can provide the original data for flood- prevention, water-supply system, and reservoir water management in plant.
